Description
The Master Series is our range of high bright broadcast monitors, suitable for use in any environment.
Featuring a brightness of 1500 nits and contrast of 1000:1, the monitors are clearly readable in any light. The 4:3 aspect ratio reduces the scanning movement of the reader’s eyes to a minimum, while an in-built tally showing camera status and optional numbered tally and clock accessories further improve the talent’s experience.
With HD-SDI, composite, and HDMI video input options, the monitors are compatible with all video scroll engines, and are the perfect partner to the latest Autocue QBox v6.
Using a proven design, with robust and versatile on-camera mounting system options already deployed by hundreds of broadcasters worldwide, the Master Series teleprompters are an ideal fit for users looking to upgrade video prompting workflows.
- Accepts all standard video inputs
- Easy to read with high brightness and high contrast
- Ideal partner to QBox v6 scroll engine
- Proven, versatile hardware
- Suitable for reading ranges of up to 7m (23 ft).
Specification
Master Series 20”
Brightness: 1500 nits
Contrast: 1000:1
Resolution: 1280×1024
Dimensions: 414 x 342 x 90mm / 16.3 x 13.5 x 3.5”

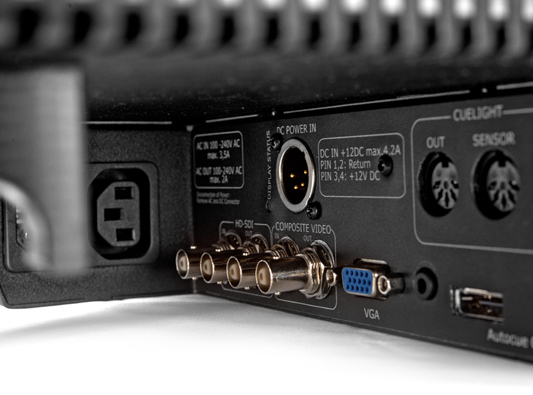

Connectivity: HD/SD-SDI, CVBS, HDMI, VGA
Monitor weight: 3.85 kg / 8.5 lb
Power input: IEC type C14, 100 – 240VAC, 50 – 60Hz
4-pin XLR, 12VDC ±5%
Power consumption: 50W Max
Power output: IEC type F, 100 – 240VAC, 50 – 60Hz, 2A Max
Package

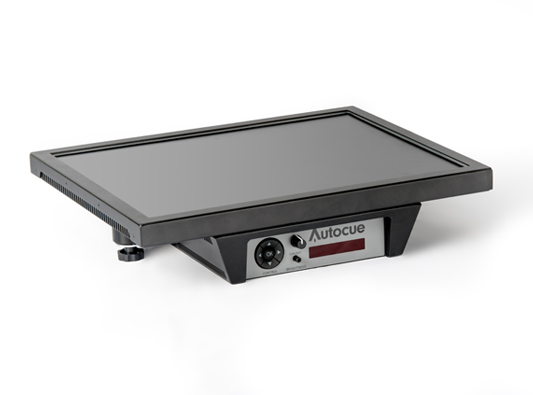

MON-MSP/20SDI: Master Series 20″ High Bright Monitor (HD-SDI/SDI, HDMI, Composite, VGA); AC cable; 2 year warranty
Also available in a choice of packages to include:

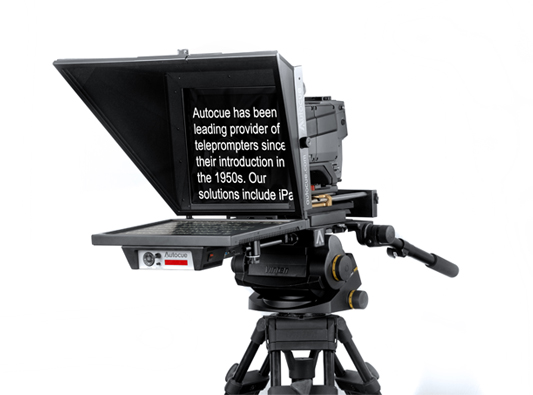

- Your choice of versatile camera mounting plate which slides back and forth to enable use of any size camera or short (7.5″) or long (12″) rods that connect directly to a pedestal.
- Broadcast quality prompter glass (70:30), designed to produce the clearest mirror image and the optimal light to the camera
- Quick installation guide and detailed user manual
Package Part Numbers
OCU-MSP20SDILWAPP: 20″ high-bright prompt monitor (MON-MSP/20SDI); Medium Wide Angle Hood and bracket set; Pro Plate mounting plate; AC cable
OCU-MSP20SDILWASRPP: 20″ high-bright prompt monitor (MON-MSP/20SDI); Large Wide Angle Hood and bracket set; Pro Plate mounting plate; AC cable
OCU-MSP20SDILWALR: 20″ high-bright prompt monitor (MON-MSP/20SDI); Large Wide Angle Hood and bracket set; Long rods; AC cable
